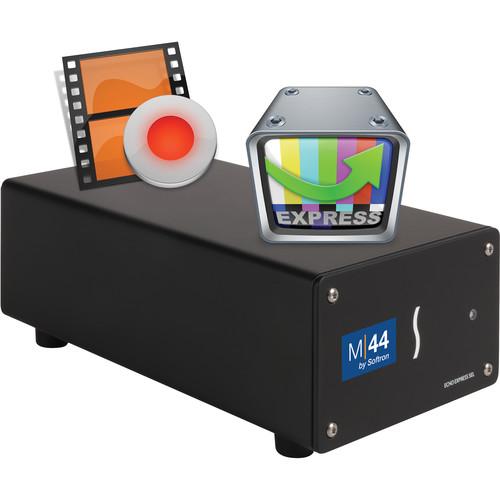

User Manual for Softron M|44 Hardware and Software Bundle with MovieRecorder 4 and OnTheAir Video Express Click to enlarge the picture
Contents of the user manual for the Softron M|44 Hardware and Software Bundle
- Product category: Computer Hardware Softron
- Brand: Softron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Softron Computer Hardware
|
User manual for the Softron M|44 Hardware and Software Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Softron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Softron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Softron product will considerably shorten its lifespan!
|
Product description With the M|44 Bundle from Softron, you can enjoy all of the features of MovieRecorder 4 and OnTheAir Video Express in a certified hardware and software package designed for Mac Pro workstations. The bundle includes one Sonnet Echo Express SEL Thunderbolt 2 Expansion Chassis housed with a Deltacast HD-SDI video card (DELTA-hd-elp-d 44) with four inputs and four outputs. Four licenses of MovieRecorder (one for each input channel) and four licenses of OnTheAir Video Express (one for each output channel) are included on a single USB dongle. The video card uses DIN 1.0/2.3 connectors, so for interfacing with cameras and video equipment that use standard BNC connectors, eight 1' BNC female to DIN 1.0/2.3 SDI cables are included. For connecting the external chassis to your Mac Pro, one 5' black Thunderbolt cable is also included.
MovieRecorder 4 is a video ingest software that supports up to four streams of 1080p video in this M|44 Bundle configuration. It can be used for direct-to-edit capture or you can set it up for scheduled recordings or even 24/7 operation. It can also be configured for live streaming or direct upload to a remote FTP server. You can choose from a number of poplar codecs, including H.264, DNxHD, and ProRes for editing in virtually any NLE software, including Apple Final Cut Pro, Adobe Premiere Pro, and Avid Media Composer. Thanks to the Deltacast DELTA-hd-elp-d 44, 6 x HD/SD, 3 x 2K, and 1 x 4K signals can be recorded. Additionally, a cloud-based backup can even be made while streaming.
In conjunction with the Deltacast video card, OnTheAir Video Express lets you playout 4 x HD/SD, 2 x 2K, and 1 x 4K signals. Softron uses its own playout engine called Smart Playout Engine, which allows mixing multiple codecs and resolutions in the same playlist without installing any additional software, and features an Automatic Resize tool that will efficiently scale frame sizes to Fill, Pan-and-Scan, or Letterbox. The standard playout file type is QuickTime (.mov), but you can also select Transport Stream (.ts), MXF (.MXF), and others. Supported video codecs include most i-frame and long-GOP codecs, including Apple ProRes, Avid NDxHD, AVC-Intra, and XDCAM. - Main Features
-
- Record 4 HD video channels at once over a single Thunderbolt port
- Playout 4 HD video channels
- Compact Sonnet Echo Express SEL Thunderbolt 2 Expansion Chassis
- Low-profile Deltacast DELTA-hd-elp-d 44 video card
- Manual or scheduled recordings
- Timer to automatically stop recording a manual recording after a given time
- Direct link from OnTheAir Video or OnTheAir Node (no video input required to ingest from these applications playing on the same Mac)
- Looped recording i.e. it records permanently on the same file and goes back to the beginning when it reaches the end of the file for TimeShifting playout for example
- Encode to multiple destinations using different codecs using easy presets.
- Support for 4K recording (quad-link HD-SDI)
- MXF and QuickTime file support
- H.264 support
- Record Closed Captioning CEA-708 to a QuickTime CC track. (Requires the CC option; only with HD sources)
- Frame-accurate file switch for 24/7 recording
- Remote Control with a REST API
- Edit-While-Ingest
-
- Using Classic (set a recording duration and the duration is updated at the end of the recording) or Segmented files (files just grow over time)
- Compatible with most editing application (including Final Cut Pro X, Adobe Premiere)
- Scheduling
-
- Schedule weekly recordings
- Daily recordings
- Each schedule item can have its own destination/file name
- Streaming (with Optional MovieStreamer HLS)
-
- Support for adaptive streaming; encodes to multiple bit-rates and formats
- Automatic upload to FTP or Amazon S3
- Integration with JWPlayer for Flash compatibility
In the Box Softron M|44 Hardware and Software Bundle with MovieRecorder 4 and OnTheAir Video Express USB Dongle with Four Licenses of Softron MovieRecorder 4 and Four Licenses of OnTheAir Video Express Deltacast DELTA-hd-elp-d 44 SDI Video I/O Card Echo Express SEL Thunderbolt 2 Expansion Chassis Thunderbolt Cable (5', Black) 8 x BNC Female to DIN SDI Cables (1') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Softron M|44 Hardware and Software Bundle with MovieRecorder 4 and OnTheAir Video Express in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoftron M|44 and MovieRecorder 4 Specs | | | Bus Interface | PCIe Gen2 x4 | | Form Factor | Low-profile, half-length PCIe | | Connectors | DIN 1.0/2.3 | | Inputs | 4 x HD/SD-SDI | | Outputs | 4 x HD/SD-SDI | | Sync Input | Blackburst or tri-level sync (genlock) reference input | | Video Signal | Single-link 4:2:2 10-bit, dual-link 4:2:2 10-bit, quad-link 4:2:2 10-bit | | SDI Formats Supported | SD-SDI
HD-SDI
Dual-Link HD-SDI
Quad-Link HD-SDI | | Video Scaler | No | | Resolutions & Frame Rates | 4096 x 2160p 23.98/24/25/29.97/30 (quad-link)
3840 x 2160p 23.98/24/25/29.97/30 (quad-link)
2048 x 1080p 23.98/24/25/29.97/30
2048 x 1080PsF 23.98/24/25/29.97/30
1920 x 1080p 23.98/24/25/29.97/30
1920 x 1080p 50/59.94/60 (dual-link)
1920 x 1080PsF 23.98/24/25/29.97/30
1920 x 1080i 50/59.94/60
625i50 (PAL)
525i59.94 (NTSC) | | Audio Formats | Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link (SMPTE 272M and SMPTE 299-x) | | Ancillary Data | SMPTE 291, SMPTE 272/299 (Audio), SMPTE 12-2 (VITC), SMPTE 352 (payload ID), SMPTE 334 (closed captions) | | | | Input | Video Codecs:
Apple ProRes 422 Family
Apple ProRes 4444
Avid DNxHD
H.264
Uncompressed
File Wrappers:
QuickTime (.mov)
Transport Stream (support coming in the future)
Audio Codecs:
AAC
Apple Lossless
Linear PCM | | Output | Video Codecs:
Apple ProRes 422 Family
Apple ProRes 4444
AVC-Intra (50 & 100)
AVCHD
Avid DNxHD
DV-PAL
DV/DVCPRO-NTSC
DVCPro-PAL
DVCPro HD
DVCPro 50
H.264
HDV
MPEG IMX (30/40/50)
MPEG-2
MPEG-4 Video
None
Photo-JPEG
Uncompressed
XDCAM EX
XDCAM HD
XDCAM HD422
Video Wrappers:
AVI
DV
M2T
M2V
M4V
MP2
MP4
MPEG
MPG
MXF OP1a
QuickTime (MOV)
Transport Stream (ts)
Audio Codecs:
AAC
Apple Lossless
MP2
MP3
Linear PCM
Still Image Formats:
BMP
PSD
GIF (only the first image)
JPEG
JPEG 20000
PNG
Targa
TIFF | | | | External Connectors | 2 x Thunderbolt 2 | | Power Supply | 60 W, 100 to 240 VAC, 50 to 60 Hz | | | | Operating system | Mac OS X 10.9.5 and later | | RAM | 16 GB minimum, 32 GB recommended | | Compatible Storage | Any storage that can sustain the required constant write speed (depending on the number of channels, the codec and format). For network storage, make sure to enable Macro blocks, and disable cache flushing. | | Monitor | Monitor needs to be connected for Preview (Open GL active) | | Hardware Acceleration | Required for H.264 encoding with all Mac computers with i5 or i7 processors, running Mac OS 10.9.5 or later (hardware acceleration is available only for one channel) | | Computer | Minimum recommended computer for 6 channels of ingest and 2 channels of playout in 720p (8-bit):
Apple ProRes (Proxy): Mac Pro 2013 4-Core
Apple ProRes (LT): Mac Pro 2013 8-Core
Apple ProRes 422: Mac Pro 2013 8-Core
Apple ProRes (HQ): Mac Pro 2013 12-Core
AVC-Intra 50: Max 4 channels of ingest and 2 outputs with a Mac Pro 2013 12-Core
AVC-Intra 100: Max 4 channels of ingest and 2 outputs with a Mac Pro 2013 12-Core
DNxHD 145: Mac Pro 2013 12-Core
DVCPRO HD: Mac Pro 2013 4-Core
H.264 Baseline: Max 4 channels of ingest and 2 outputs with a Mac Pro 2013 12-Core
H.264 Main: Max 3 channels of ingest and 2 outputs with a Mac Pro 2013 12-Core
H.264 High: Max 3 channels of ingest and 2 outputs with a Mac Pro 2013 12-Core
XDCAM EX: Mac Pro 2013 12-Core
XDCAM HD: Mac Pro 2013 12-Core
XDCAM HD422: Mac Pro 2013 12-Core | | | | Weight | 2.2 lb / 1 kg | | Dimensions | 2.82 x 4 x 8.42" / 7.16 x 10.16 x 21.39 cm |
